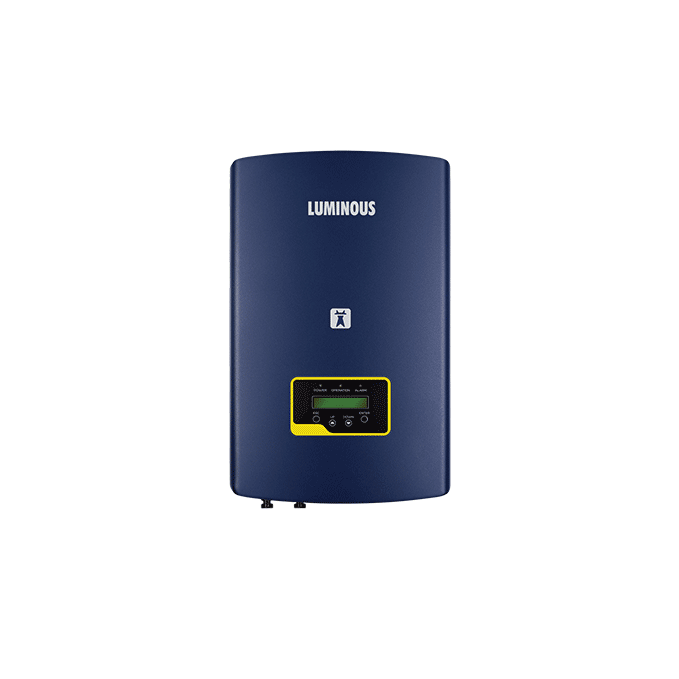

Luminous SOLAR NXT+ 12.5 KVA/120V
12.5 KVA Hybrid Inverter
₹299550.00₹111522.00
Solar NXE PRO range from Luminous comes with in-built MPPT technology, that helps in converting 30% more power from solar panels as compared to PWM solar inverters.
MPPT Technology
MPPT charge controllers are more efficient compared to PWM charge controllers as they convert 30% more power from solar panels
Smart Solar Optimization
Gives priority to solar in both backup and charging mode of operation thereby maximizing solar energy utilization
User Settable Saving Modes
SL-1 Mode, SL-2 Mode, SL-3 Mode and SL-4 Mode; UPS and Normal Mode
Max Capacity Utilization
Connect Solar Panels more than Solar Inverter’s VA ratings
User Friendly Multicolor LCD Display
Makes it convenient for user to easily monitor various performance parameters
Capacity (KVA): 15KVA
Max supported panel power: 16500 Wp
Nominal Battery Bank Voltage: 240V
User Settable Saving Modes:
- SL-1 Mode, SL-2 Mode, SL-3 and SL-4 Mode
- UPS and Normal Modes
Max Capacity Utilization: Connect Solar Panels more than Solar Inverter’s VA ratings (16500Wp)
User friendly Multicolour LCD Display
MCB protection against short circuit protection
Inbuilt isolation transformer to protect from grid surges and noise
Pure sine wave output for better performance & safety of connected loads
Safe for your home with comprehensive protection features such as short-circuit, reverse polarity, over temperature, etc.
24 Months Warranty
What's in the box 1 N Inverter, 1 N Manual
Dimensions (in cms) 27.6*50.9*64.2
VA Rating 15KVA
No. of Batteries Supported 20
Net Weight(In Kg) 99.9
Maximum Panel Capacity (W) 16500Wp
Nominal Battery bank voltage 240V
Application Area Commercial Applications, Large Residences
Product Category PCU
Input Voltage Range 550V
Features - Smart Solar Optimization - User Settable Saving Modes - Max Capacity Utilization - User friendly Multicolor LCD display
